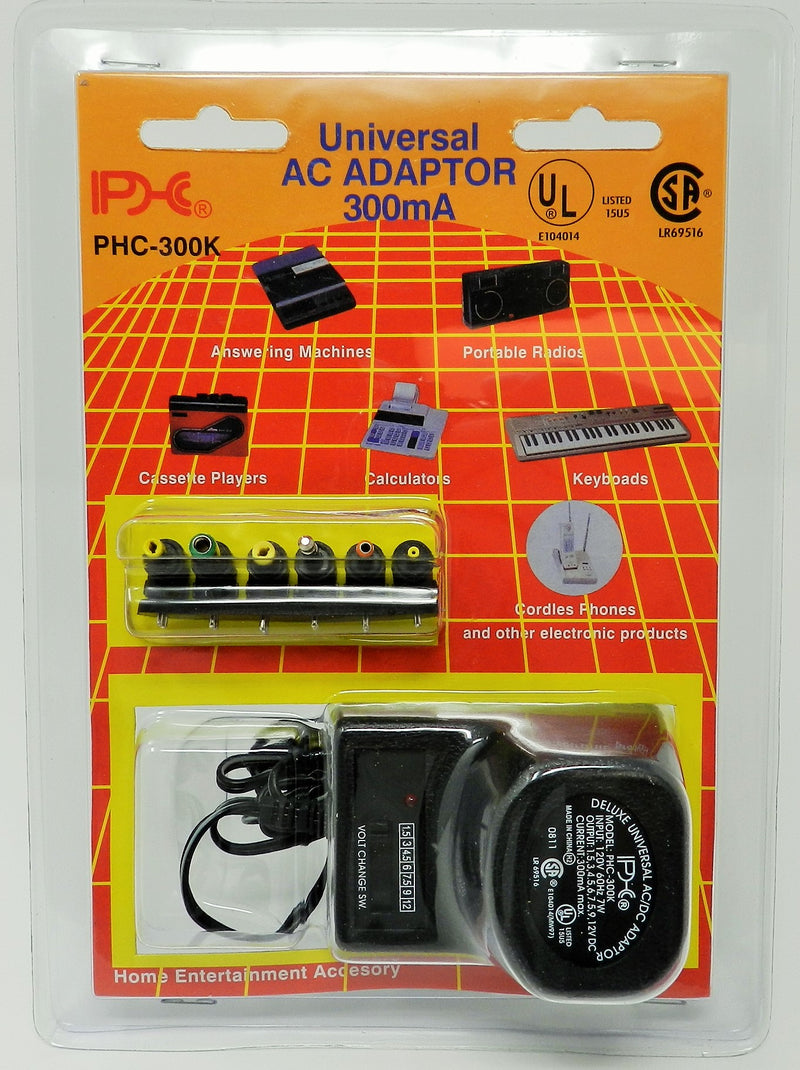

AC-DC Universal Power Adapter Voltage Output: 1.5VDC-12VDC @ 300 mA; 6-plugs; Part # 584D - PHC-300K - SMP-ELI-035

DC Universal Power Adapter Multi Voltage Output: 1.5V DC-12V DC @ 300 mA; 6-plugs

Name: DC Universal Power Adapter Multi Voltage Output: 1.5V DC-12V DC @ 300 mA; 6-plugs
Brand: PHC Enterprise, Inc.
SKU: 584D
Price: 10.00 USD
Availability: InStock
Rating: 3.67 (6 reviews)

by PHC Enterprise, Inc.

$10.00 - $10.00

$10.00

$10.00 - $10.00

$10.00

Part Number: 584D

Input: 120VAC 50/60Hz 7W

Selectable DC Output: 1.5V, 3V, 4.5V, 6V, 7.5V, 9V, 12V @ 300mA

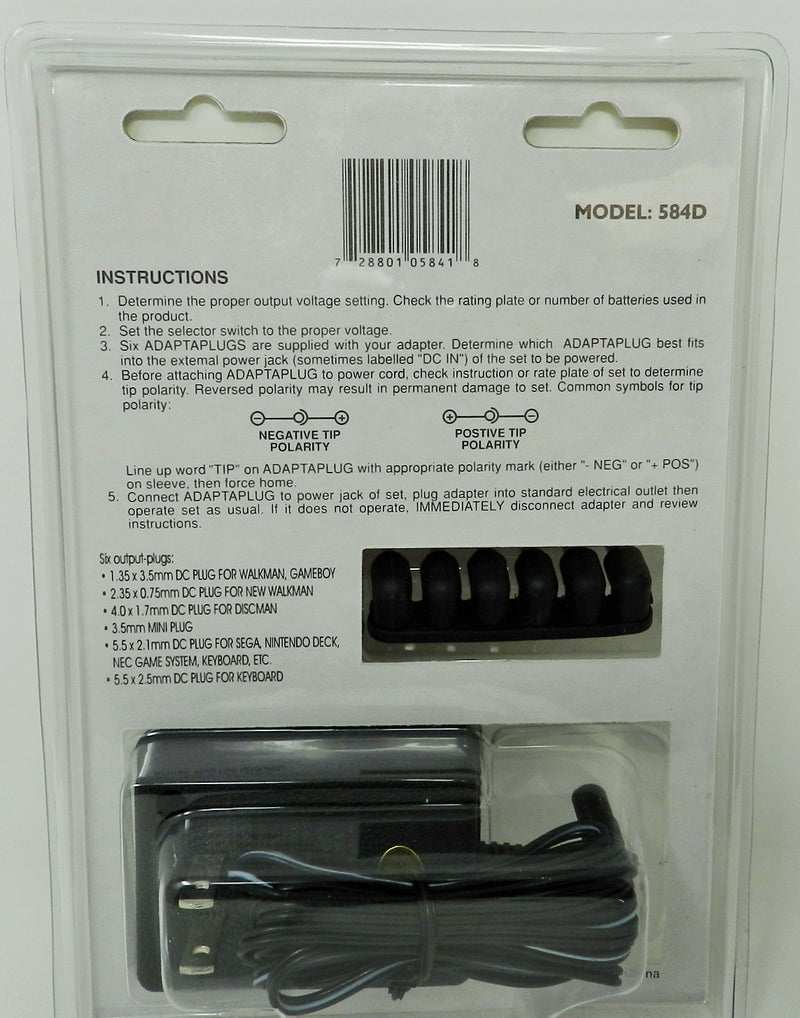

Plugs: 6 interchangeable detachable plugs

Tip sizes: 3.5mm mono/male, 1.3 x 3.5mm, 1.7 x 4.0mm, 2.1 x 5.5mm, 2.5 x 5.5mm, 2.35 x 0.75mm

This is a linear non-regulated power supply with UL and CSA approval

Quantity

Seems Decent

Lots of settings and attachments. Should be useful. Bought to replace a plug for a radio. The power supply is some new switching stuff that totally blocks AM. Since no batteries makes no sense! Supposedly a Biden mandate (no surprise).

Yes

Thank you for your feedback! We're glad to hear that the AC-DC Universal Power Adapter is working well for you. If you have any further questions or concerns, please don't hesitate to reach out to us. Have a great day!

1.5V DC never works

Sadly the 1.5V DC always gives me 3.5V output. 12VDC always gives around 20V output.

Hello Ning Yu,
Sorry the power supply wasn't what you were expecting. Please understand this is a AC-DC 'non-regulated' power supply. Therefore, a no load reading on a non-regulated supply typically is 1.5x higher. The voltage would drop to the intended setting once there is a load on it.

You would need a 'regulated' or a switching power supply which are always regulated. Our PHC-1000k and PHC-2200W models are regulated and would read about 0.2VDC higher on a no load meter reading. Hope that helps.

Regards,
Hans
